AOV 10 Amp High Spec

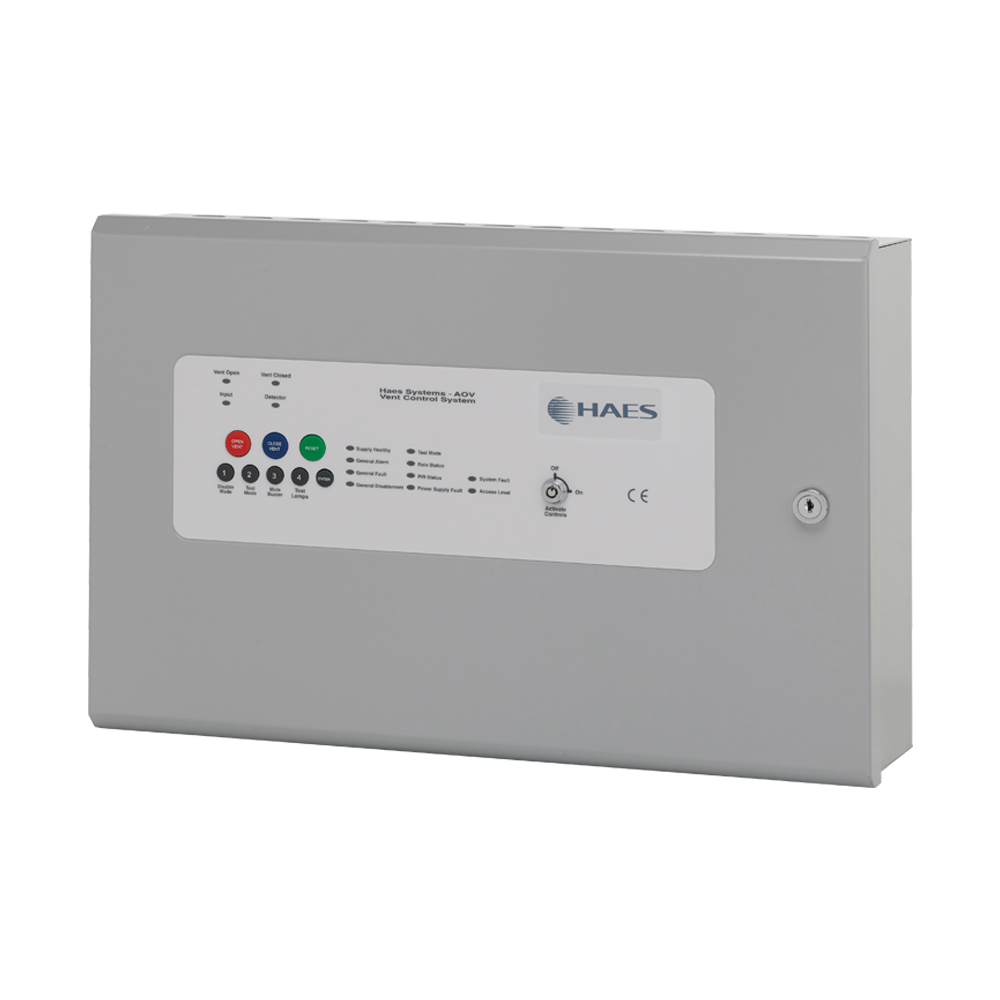

Image of AOV Control Panel
Product code: AOV-10H

Single zone Automatic Opening Vent control panel with 10 amp integral power supply. High spec version.

View Product Details
Twin Wire

£856.00 (Ex. VAT)

Quantity
SKU: AOV-10H Category: Brand: AOV

Product Features

  • 10 amp integral PSU
  • 1 amp magnetic vent control output
  • 2.5 amp timed polarity reversal actuator control output
  • Alarm relay change over contacts
  • Fault relay change over contacts
  • Trigger input (monitored)
  • Smoke detector input (conventional or Twin Wire operation)
  • False alarm mode
  • Vent control switch input, Open/Close
  • Fireman’s control switch input, On/Off/Auto
  • Disable & Test modes
  • Rain sensor input (monitored)
  • PIR sensor input (monitored)
  • 12vdc output (100mA) for PIR power
  • 0/10v positional control input 10% steps
  • 0/10v positional data output
Image of AOV Control Panel

Technical Specifications

Enclosure1.2mm Mild Steel IP30. Colour ref: MW334E Interpon powder coat
Cable EntryVia 20mm knockouts located in the top and rear of the cabinet
DimensionsBack box: 450mm W x 300mm H x 110mm D, Lid: 460mm W x 310mm H x 25mm D
Mains Supply10A internal switch mode power supply, Nom 27v DC
Battery Capacity2 x 12Ah 12v VRSLA
Detection ZonesSingle monitored detection zone. EOL = 4K7R
Twin WireSelectable in panel (enables AV devices to be connected to det cct)
On Board Relays1 x Alarm, 1 x Fault, volt free changeover
Fireman's Switch InputFireman’s control switch input for On/Off/Auto
Vent Control InputVent control switch input, Open/Close (rocker switch)
InputsTrigger (470Ohm), rain sensor & PIR monitored inputs
Actuator Output10A timed polarity reversal actuator control output
Aux Output28v maintained magnetic vent output, switches off to release magnet in the alarm condition. Max 1A @ 28vdc. This output can be inverted to provide 28v in alarm condition for powering sounders etc.
BMS Connection0/10v positional control input 10% steps, 0/10v positional data output
False Alarm ManagementType A dependency mode, approved by LPCB
