EN54 Power Supply 5.0A (Large)

Product code: PSAL-50EN54

EN54 approved 24v 5.0 amp power supply / battery charger unit suitable for use in all EN54 fire alarm systems. Space for 38Ah batteries.


£588.00 (Ex. VAT)

Quantity

SKU: PSAL-50EN54 Category:

Product Features

  • High efficiency switch mode power supply/battery charger
  • 5.0 amp model
  • Large enclosure for 38Ah batteries
  • Fully compliant to EN54-4
  • Power and fault indication
  • Monitored battery internal series resistance

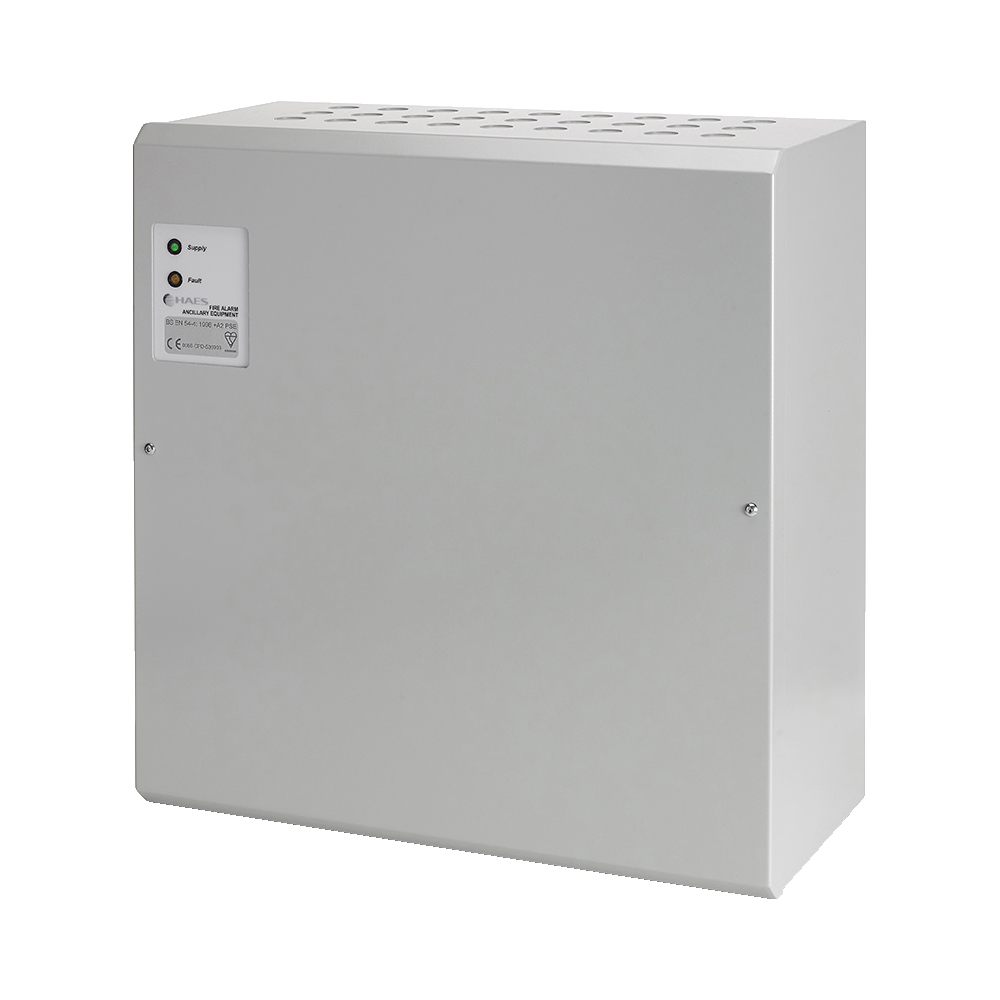

Image of large power supply unit

Technical Specifications

Dimensions425mm H x 406mm W x 190mm D
Operating Temperature-5oC to +40oC
Relative Humidity95%
Wire Guage (max)2.5mm2
Input Supply (AC)220-240vac, 47-63Hz, 0.5A
Output Voltage (DC)Max 28.5vdc - Min 21vdc
Output Current3.0A (min load 10mA)
Charging Voltage27.4v @ 20oC nominal temperature compensated
Charging Current2.0mA
Ripple200mV (1v p-p switching noise)
Fuse (AC Mains TB)T3.15AH250V
Battery Capacity38Ah
Battery Internal Resistance0.8Ω max
Deep Discharge Cut-Off19v
Fault Relay30v ac/dc, 1.0A
Standard (Harmonised)EN54-4:1997 + A1:2002 + A2:2006

Technical Specification

Product Downloads

The following downloads are available for this product:
