TRX Power Supply 0.7A

Product code: TRX0.7A-24

24v regulated transformer rectifier power supply c/w integral load switching relay. Output rated at 0.7amps continual load. (Not suitable for charging batteries).


£79.00 (Ex. VAT)

Quantity

SKU: TRX0.7A-24 Category:

Product Features

  • High efficiency switched mode power supply (not suitable for charging batteries)
  • 0.7A continuous load rated
  • Mini enclosure
  • Regulated 24v dc supply output
  • Integral load switching relay
  • Wide mains input voltage range
  • Overload protected

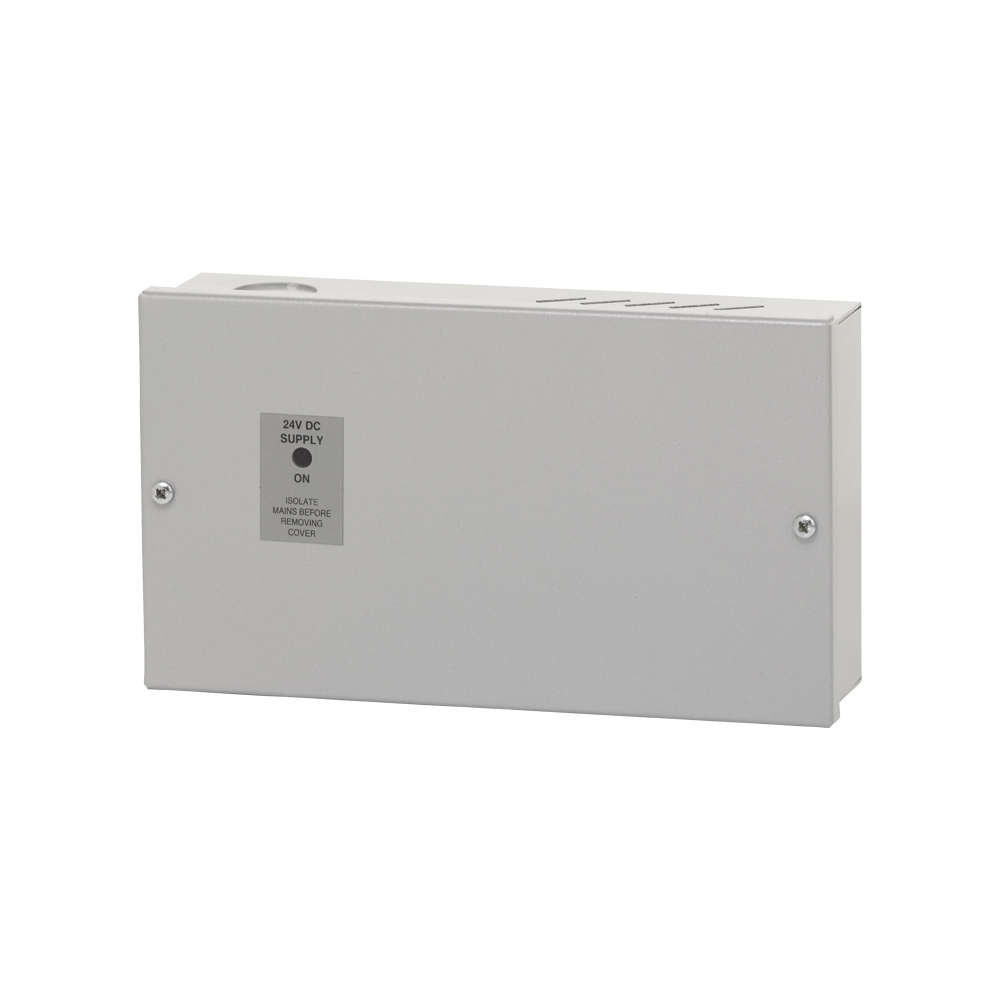

Image of TRX 0.7 Power Supply

Technical Specifications

Enclosure1.2mm Mild Steel IP34. Colour ref: MW334E Interpon powder coat
Cable EntryVia 20mm knockouts located in the top and rear of the cabinet
Dimensions165mm W x 95mm H x 40mm D
Input Voltage100-245vac, 50-60Hz
Input Current0.55A / 230vac
RelaySingle pole volt free changeover, 24vdc coil
Temperature Rating-25oC to +70oC. Humidity 20-90% RH non condensing
Output Voltage24vdc
Max Current1.0A
Max Continuous Load0.7A
Overload115-135%

Technical Specification
